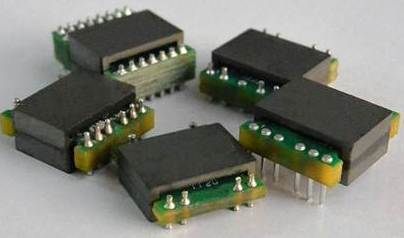

Champs-Tech Planar for DC1739B-C Ref Design & Demo Board

Forward Active Clamp Topology -- Highest Efficiency. Planar Design. Aggressive Interleave planar construction -- lowest achievable Leakage Inductance. Multilayer PCB optimization for lowest AC resistance and Proximity Effect. Wide variety of Turns Ratios in stock. Contact Us for DC-DC Module Design Contact Us for SM Assembly of all Components for DC-DC Converter

1. Ref Design DC1739B-C. Input Voltage Range 9-36.

See Also: Champs G45 Series PNs and Data Sheets on Main Page

Champs PN	Vin (Min)	Vin (Max)	Vout	Io
G45R2-0306	9	36	12	10.0
Linear Technology DC1739B-C URL

®Linear Technology Inc

Options include discrete component or integrated complete DC-DC Converter Module:

• Surface Mount Discrete Component Design.

• Discrete Component Implemented in Pad-to-Pad Mounting.

• Component implemented as Half-Embedded Design + SM Assembly of all components required of DC-DC Converter.

• Implemented as a Fully Embedded Design + SM Assembly of all components required of DC-DC Converter.

• SMT Component Assembly of PCB Including Planar Magnetics Inclusive of Converter Testing. Volume capacity 100K per month

Notes:
1. Consult Linear Tech Ref Design BOM and Schematic for exact device as specified for use by Linear in that Reference Design.
2. In all cases Champs Technologies makes no representation as to suitability of the Reference Design itself as that is the design responsibility and Intellectual Property of Linear Technology.
3. Champs Technologies responsibility is limited to the use of its component as described in the Data Sheet and any warranty express or implied is limited to component replacement if found defective.
