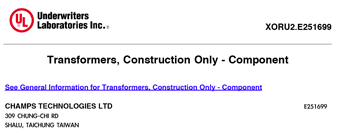

UL Certification

PLANAR MAGNETICS GUIDELINE

PL14 & PL18 SERIES....... Optimum 10W-100W forward converter application, wide spread use in 1/8, 1/16 brick footprint

PL40, PP40, PI40 Inductor SERIES...... Ideal for Telecom Application for power 30-200W

PL58, PP58 SERIES....... Rated to 300W Active Clamp Forward at 250 KHz & 600W 250KHz ZVT Bridge

PL58 AC SERIES.....Designed 8mm Creepage over 3750VAC Dielectric Isolation. Rated 100W-1KW

"PEACOCK" SERIES........ Rated to 800W & Unique Thermal Spread Solution

PL80 SERIES........Rated to 1KW + Worldwide use in AC Adaptor to 300W

PLEE125 & PLEE200 SERIES......Rated 50W-1KW. “Legacy Planar Product” – that is – De Facto Standard sizes originating from 1980s – Still Supported

PLEE500 & PLEE1000 SERIES.... Rated 500W-10KW | Worldwide use PFC& UPS. Excellent High Current Capability in Volumetrically Efficient Package

Planar Magnetics Categories

• Ferrites
• Multi-layer PCB
• Pre-tool leadframes
• OEM Assembly
• Standard Design Series

Quality Standards

• ISO-9001

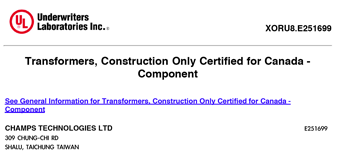

• UL Certification
• RoHS Compliant
