Champs-Tech UY38 Embedded Series Planar

General Notes:

1. All designs can be supplied with planar windings embedded in the pcb of the Main Module of the converter. Installed power components, SM Assy and Heat Sink + incorporation into a module available.

2. Topologies Supported: PSFB -- Current Doubler & FWCT; LLC & CLLC; DAB DC-DC Converter applications.

2. Add thermal pads in combination with heat sinks and clamps allows for higher power throughput at rated ambient and hot spot temperatures.

3. Add-On PCB Size: 25mm wide x 48mm length x 10-12mm Height

4. Multilayer PCB optimization for lowest AC resistance & Proximity Loss Effect

5. Integer Turns available from 1T to 40T.                               .

7. Wide variety of PNs, Designs and Turns Ratios in stock. If not listed, Contact Us

UY38 Embedded Catalog

1. Output Power Ratings 600-1200W.

Champs PN	Vin (Min)	Vin (Max)	Vout	Iout (Adc)	Pout (Watts)	Freq (KHz)	Full Period Duty
UY38-1216-250D	210	440	250	4.0	1100	300	92%
UY38-1216-250D-10m	210	440	250	4.0	1100	300	92%
UY38-1216-TH-250D-10m	210	440	250	4.0	1100	300	92%
UY38-100202-250D	210	440	17	65	1100	300	83.4%
UY38-100202-250D-TH	210	440	17	65	1100	300	83.4%
UY38-160202-250D	260	420	28	21.5	600	200	88.7%
UY38-160202-TH-250D	260	420	28	21.5	600	200	88.7%
UY38-160202-250D-10m	260	420	28	21.5	600	200	88.7%
UY38-160202-TH-10m	260	420	28	21.5	600	200	88.7%
UY38-240404-250D	340	420	25	48	1200	200	91.0%
UY38-240404-TH-250D	340	420	25	48	1200	200	91.0%

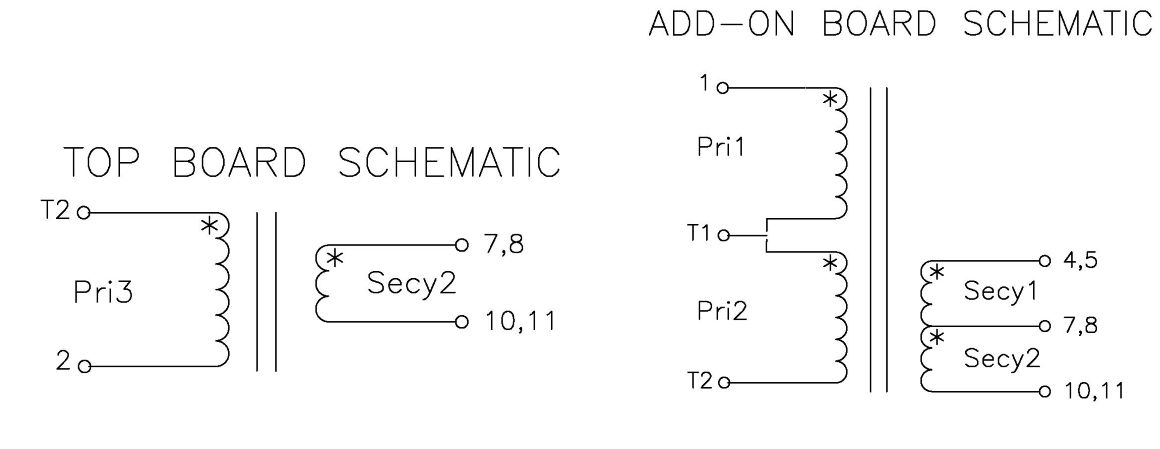

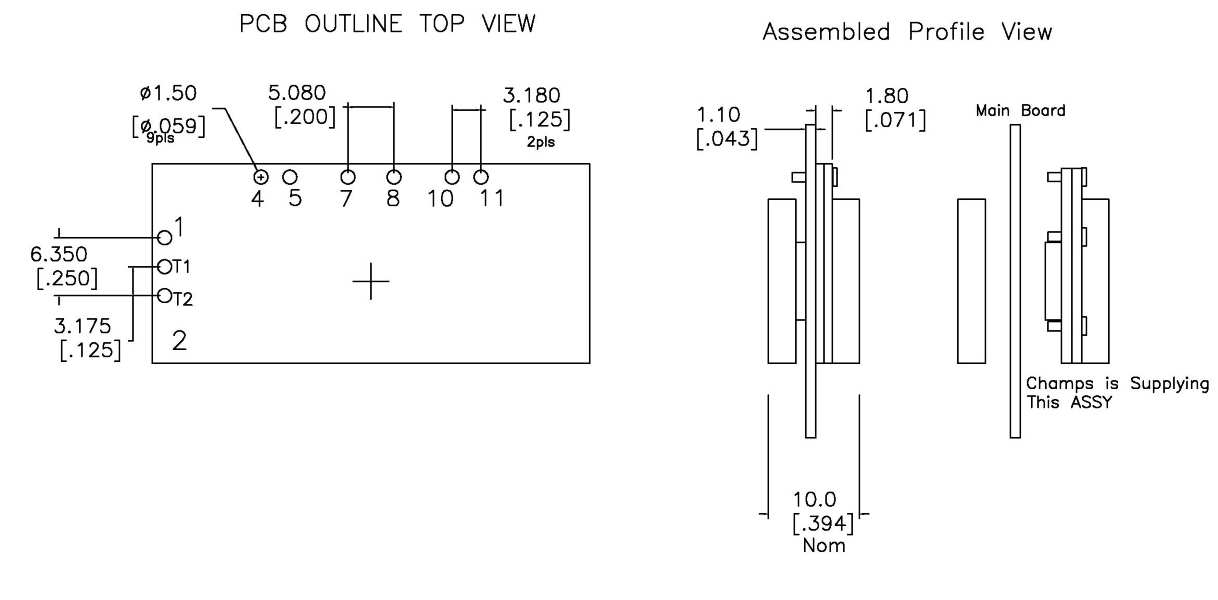

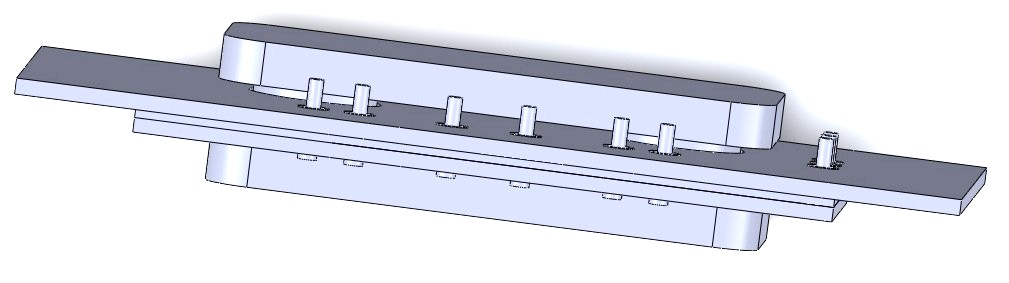

UY38 Embedded Mechanical Drawing
