General Notes:
1. Proven
in actual PSFB to Current Doubler and FWCT configured DC-DC converter
applications.
2. Adding effective thermal
conduction with thermal pads in combination with heat sinks and clamps allows
for higher power throughput at rated ambient and hot spot temperatures.

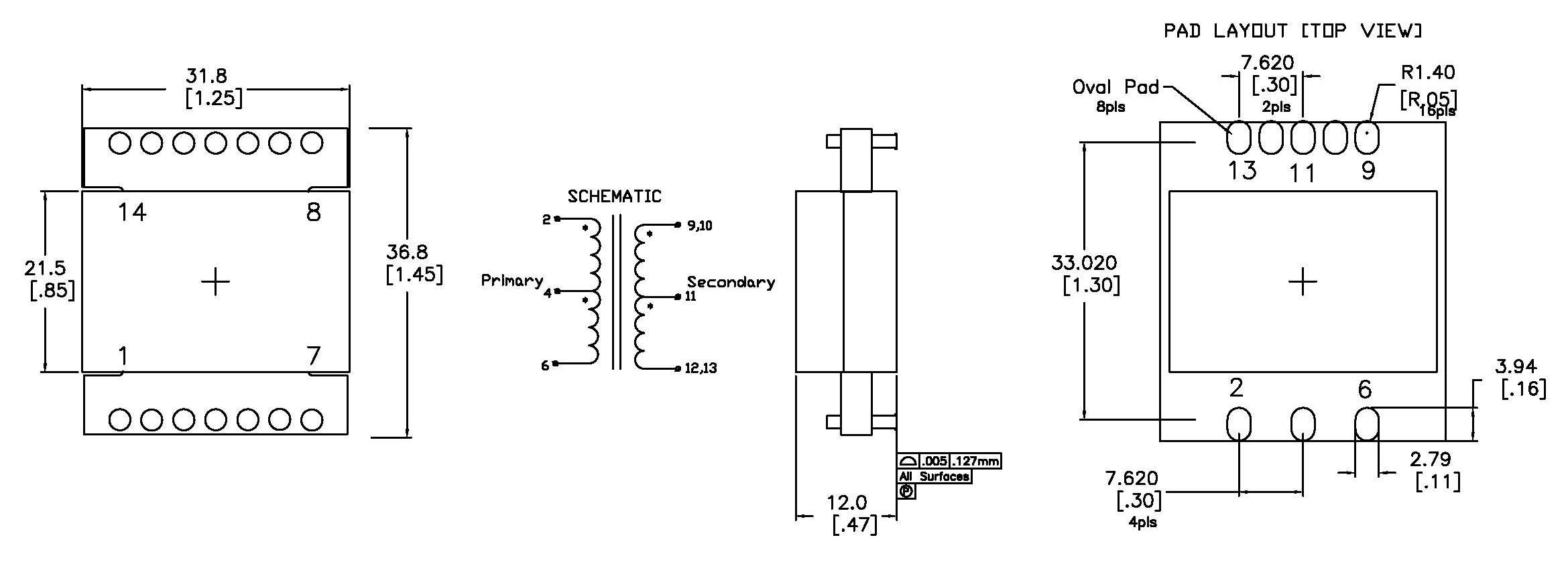

3. Size: 31.8mm wide x 36.8 mm length x 12-15 mm Height
4. Multilayer PCB optimization for
lowest AC resistance & Proximity Loss Effect
5. Integer Turns available from 1T
to 40T. Can be used as Primary or Secondary. Mechanical configuration and
outline allow for a “flex” arrangement. Contact factory for
information on any power topology design.
6. All designs can be supplied
with planar windings embedded in the pcb of the
Main Module of the converter. Heat Sink and installed power components SM
assembly and installation and incorporation into a module are also available.
7. Wide variety of PNs, Designs and Turns Ratios in stock.
If not listed, Contact Us
8. Surface Mount, Thru-Hole, Pad-to-Pad, Embedded Planar
Windings as Options
ER80 PSFB
Series Catalog
