PoE 54Vout DC2306 Ref Designs 9-15Vin || 20-60Vin || 36-72Vin || 50-150Vin || 85-300Vin

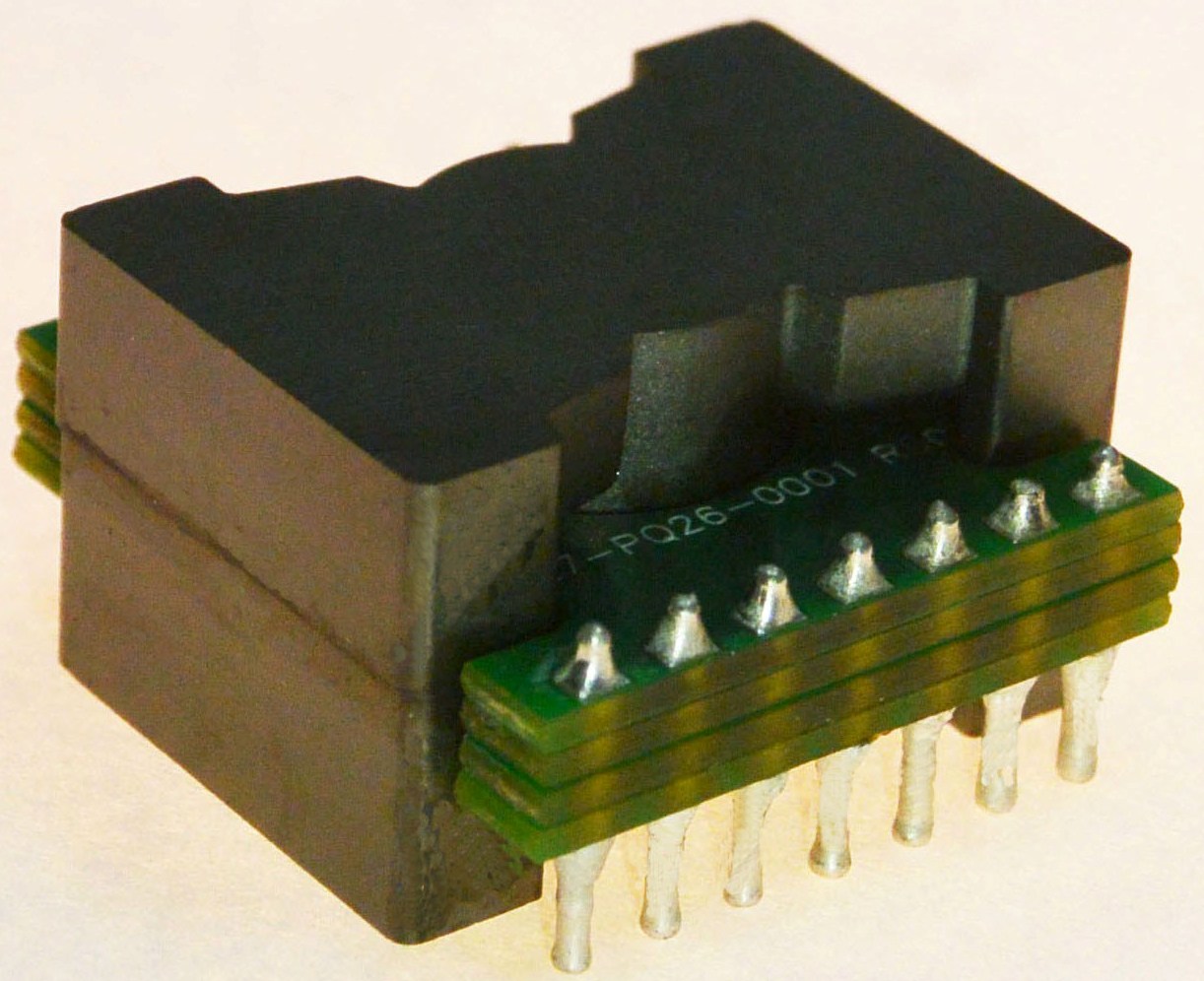

Forward Active Clamp Topology -- Highest Efficiency. Planar Design.
Aggressive Interleave planar construction -- lowest achievable Leakage Inductance.
Multilayer PCB optimization for lowest AC resistance and Proximity Effect.
Wide variety of Turns Ratios in stock.
Contact Us for DC-DC Module Design
Contact Us for SM Assembly of all Components for DC-DC Converter

Champs-Tech DC2306A Ref Design Catalog Page

1. Demo Board 2306A. Input Voltage Range 10-54Vin. Output Voltage 48V or 54V at 1.5A.

Champs PN	Vin (Min)	Vin (Max)	Vout	Io	Output Inductor
P26R2-0322-18R0	10	54	54	1.5	PQA2050-330-LTC
https://www.analog.com/en/design-center/evaluation-hardware-and-software/evaluation-boards-kits/dc2306a.html

®Linear Technology Inc

2. Ref Design Input Range 9-15Vin. Output Voltage 54V at 3A.

See Also: Champs P26 and 80R6 Series Comprehensive PNs and Data Sheets [Coming Soon]

Champs PN	Vin (Min)	Vin (Max)	Vout	Io	Output Inductor
80R6-0218-8R0	9	15	54	3.0	PQI26-330-LTC
https://www.analog.com/en/design-center/evaluation-hardware-and-software/evaluation-boards-kits/dc2306a.html

®Linear Technology Inc

3. Ref Design Input Range 20-60. Output Voltage 54V at 3A.

See Also: Champs P26 and 80R6 Series PNs and Data Sheets [Coming Soon]

Champs PN	Vin (Min)	Vin (Max)	Vout	Io	Output Inductor
80R6-0416-S03	20	60	54	3.0	PQI26-330-LTC
P26R6-0416-S03	20	60	54	3.0	PQI26-330-LTC

4. Ref Design Input Range 19-29. Output Voltage 48V at 2A.

http://www.linear.com/solutions/5249

Champs PN	Vin (Min)	Vin (Max)	Vout	Io	Output Inductor
55R2-8804-xx-A11	19	29	48	2.0	PQA2050-220-LTC

5. Ref Design Input Range 36-72. Output Voltage 54V at 3A.

See Also: Champs P26 and 80R6 Series PNs and Data Sheets [Coming Soon]

Champs PN	Vin (Min)	Vin (Max)	Vout	Io	Output Inductor
80R2-0614	36	72	54	3.0	PQI26-330-LTC
P26R2-0614	36	72	54	3.0	PQI26-330-LTC

6. Ref Design Input Range 50-150. Output Voltage 54V at 3A.

See Also: Champs P26 and 80R6 Series PNs and Data Sheets [Coming Soon]

Champs PN	Vin (Min)	Vin (Max)	Vout	Io	Output Inductor
80R6-0814-S02	50	150	54	3.0	PQI26-330-LTC
P26R6-0814-02-S01	50	150	54	3.0	PQI26-330-LTC

7. Ref Design Input Range 60-170. Output Voltage 54V.

See Also: Champs P26 and 80R6 Series PNs and Data Sheets [Coming Soon]

Champs PN	Vin (Min)	Vin (Max)	Vout	Io	Output Inductor
P26R6-1016-02-S01	60	170	54	3.0	PQI26-330-LTC
D26R6-1226-03	60	170	54	1.4	PQA2050-330-LTC

8. Ref Design Input Range 85-300. Output Voltage 48V.

Champs PN	Vin (Min)	Vin (Max)	Vout	Io	Output Inductor
P26R6-1814	85	300	48	3.5	PQI26-220-LTC

Options include discrete component or integrated complete DC-DC Converter Module:

Surface Mount Discrete Component Design.

Discrete Component Implemented in Pad-to-Pad Mounting.

Component implemented as Half-Embedded Design + SM Assembly of all components required of DC-DC Converter.

Implemented as a Fully Embedded Design + SM Assembly of all components required of DC-DC Converter.

SMT Component Assembly of PCB Including Planar Magnetics Inclusive of Converter Testing. Volume capacity 100K per month

Notes:
1. Consult Linear Tech Ref Design BOM and Schematic for exact device as specified for use by Linear in that Reference Design.
2. In all cases Champs Technologies makes no representation as to suitability of the Reference Design itself as that is the design responsibility and Intellectual Property of Linear Technology.
3. Champs Technologies responsibility is limited to the use of its component as described in the Data Sheet and any warranty express or implied is limited to component replacement if found defective.
